Complete Guide to Secondary Air Tubes
Understanding Secondary Combustion Technology

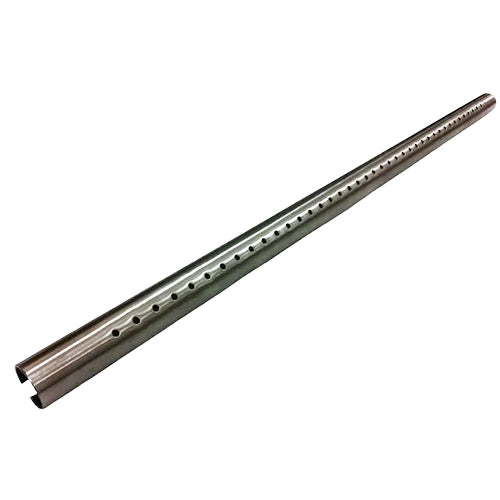

Secondary air tubes are innovative components that dramatically improve wood stove efficiency and reduce emissions. These perforated tubes introduce preheated combustion air into the upper firebox, where it ignites unburned gases and particles rising from the primary fire. This secondary combustion creates the beautiful rolling flame pattern you see in modern EPA-certified wood stoves while extracting significantly more heat from every log. Regency F Series, H Series, I Series, R Series Classic, S Series, and CS Series stoves all feature advanced secondary air tube systems designed for clean, efficient burning.
The Science Behind Secondary Burn: Primary combustion occurs in the main fire where wood is actively burning. However, volatile gases released during this process would normally escape up the chimney unburned, wasting potential heat energy. Secondary air tubes inject oxygen at precisely the right location and temperature to ignite these gases, creating a "second fire" that captures this wasted energy. This technology is standard across Regency's F Series wood stoves (F1150, F2100, F2400, F2450, F2500, F3500, F5200) and other model lines.
How Secondary Air Systems Improve Performance
Modern secondary air tube systems can improve overall efficiency by 20-30% compared to older stoves without this technology. They reduce visible smoke emissions by up to 90%, help keep glass cleaner by promoting complete combustion, extend burn times by extracting more heat from less wood, and reduce creosote formation in your chimney by ensuring more complete combustion of wood gases.
EPA-certified wood stoves are required to have secondary combustion systems to meet strict emission standards. This technology has revolutionized wood heating, making it cleaner and more efficient than ever before.
Recognizing When Air Tubes Need Replacement
Secondary air tubes endure extreme temperatures and thermal cycling, eventually requiring replacement. Warning signs include: visible cracks or holes in the tube metal, warping that prevents proper seating in mounting brackets, clogged holes preventing air distribution, and separation or damage at the connection points.
When air tubes fail, you'll notice reduced efficiency, increased smoke output, dirtier glass requiring more frequent cleaning, and less vibrant secondary flame patterns. Most air tubes last 3-5 years with normal use, but burning wet wood or consistent overfiring can shorten their lifespan to 1-2 years.
Secondary Air Tube Maintenance
Regular cleaning prevents performance degradation. During annual maintenance, remove air tubes if possible and use a wire brush to clear clogged air holes. Ash and creosote can gradually block these critical openings, reducing secondary air injection. Inspect tube surfaces for early signs of cracking or warping—catching problems early can prevent emergency mid-season replacements.
Check tube mounting to ensure tubes remain properly seated in their brackets. Vibration from thermal cycling can sometimes loosen mounting hardware. Clean the air channels that feed the tubes, removing any ash or debris that could restrict airflow.
Common Air Tube Problems and Solutions
Clogged Holes: Small holes in air tubes can become blocked with ash. Regular cleaning with a wire brush or small drill bit restores proper airflow.
Tube Warping: Usually indicates overfiring. If tubes appear bent or no longer sit flat, excessive temperatures have damaged them and replacement is needed.
Premature Failure: Most commonly caused by burning wet or green wood, which creates corrosive conditions, or running the stove too aggressively, creating temperatures beyond design specifications.
Safety Considerations
Secondary air tubes become extremely hot during operation. Never attempt to adjust or inspect them while the stove is operating or recently used. Allow complete cooling—at least 24 hours after the last fire. When removing tubes for cleaning or replacement, have vise grips and a soft hammer ready as mounting brackets can bind from repeated thermal expansion. Work carefully to avoid damaging surrounding components. Ensure proper seating during reinstallation—incorrectly positioned tubes won't deliver air to the right locations, reducing efficiency and potentially creating smoke problems.
