Complete Guide to Rope Gaskets and Door Seals

The Science of Gasket Sealing

Wood stove gaskets serve a critical but often underappreciated role: creating perfectly airtight seals around doors, glass panels, ash drawer openings, and other access points. These seals control combustion by preventing uncontrolled air infiltration that would make your stove impossible to regulate. Whether you own a Regency F Series wood stove (F1150, F2100, F2400, F2450, F2500, F3500, F5200), H Series model (H300, H200), I Series insert, R Series Classic, S Series, or CS Series unit, maintaining quality gaskets is essential for efficient, safe operation.

How Controlled Air Works: Modern EPA wood stoves achieve clean, efficient combustion through precisely controlled air supply. Primary air enters through designated inlets at the bottom for the main fire. Secondary air enters through upper air tubes to burn gases. If gaskets leak, uncontrolled air disrupts these carefully engineered patterns, resulting in incomplete combustion, excessive smoke production, inability to control burn rate, increased creosote formation, and reduced efficiency. Regency F Series and H Series stoves require properly sealed gaskets to maintain their EPA-certified performance.

Gasket Materials and Specifications

Wood stove gaskets use specialized high-temperature materials designed to withstand continuous exposure to heat, compression, and thermal cycling. Common gasket types include:

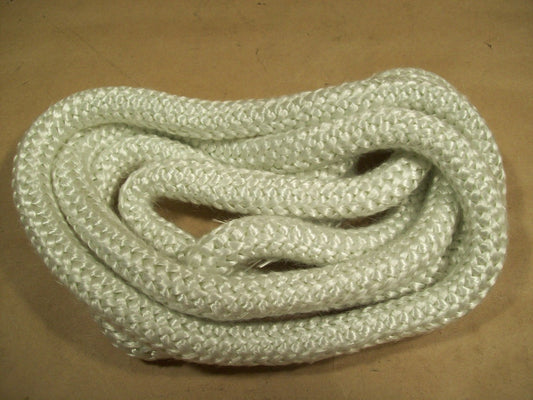

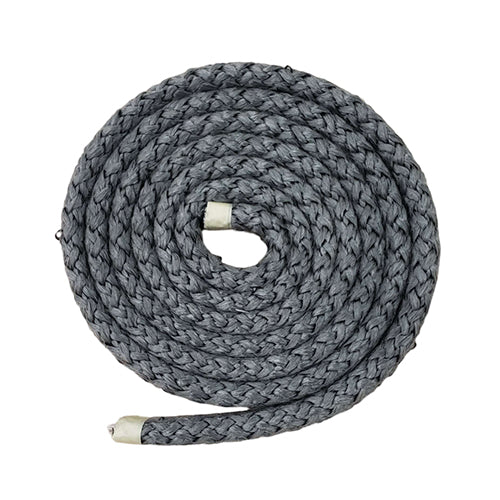

Fiberglass Rope Gasket: Most common for doors and glass. Available in various diameters (typically 1/4" to 1") and densities. Premium gaskets use higher-quality fiberglass for better resilience and longevity.

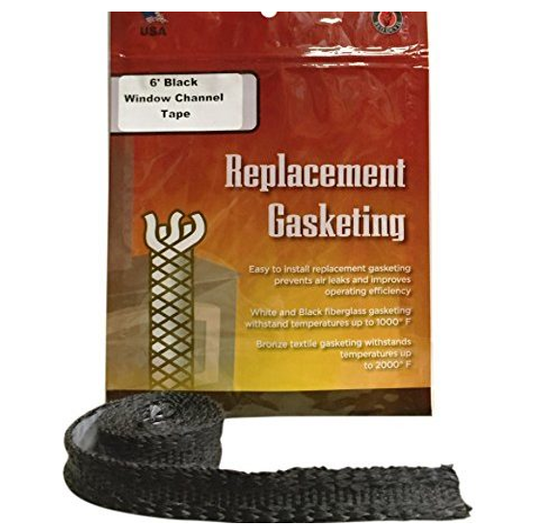

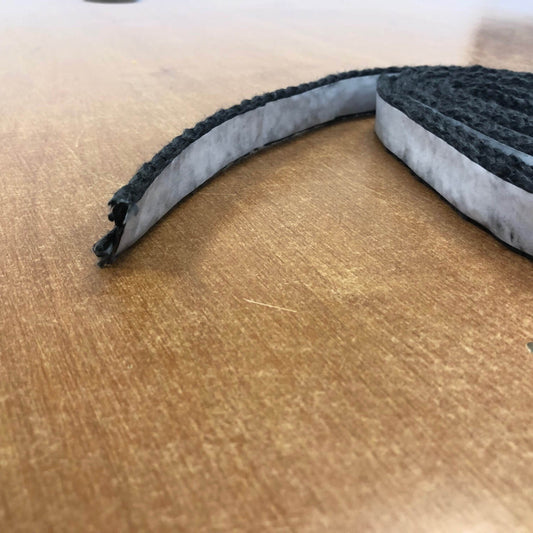

Flat Gasket Tape: Adhesive-backed tape gasket for glass installations and specialty applications. Often graphite-impregnated for improved sealing and temperature resistance.

Gasket Cement: High-temperature adhesive rated to 2000°F+ for securing gaskets in channels. Must be specifically formulated for wood stove applications—standard adhesives will fail.

Gasket diameter must match your stove's specifications exactly. Too small and it won't seal; too large and the door won't close properly. Always verify correct size before ordering replacements.

Gasket Replacement Indicators

Test gasket condition annually using the dollar bill test: close a dollar bill in the door and try to pull it out. The gasket should grip firmly enough that pulling the bill out requires moderate effort. Perform this test at multiple points around the door perimeter. Replace gaskets when showing: visible compression that no longer springs back when door opens, brittle or crumbling material, gaps or missing sections, black sooty deposits indicating air leakage, or difficulty closing door even with latch adjusted.

Most door gaskets need replacement every 2-5 years depending on usage intensity and operating conditions. Overfiring accelerates gasket deterioration significantly.

Professional Gasket Installation

Proper gasket installation ensures reliable sealing and longevity. The process requires: complete removal of old gasket material and adhesive residue—scraping or wire brushing the channel clean, thorough cleaning of gasket channel with degreaser or alcohol to ensure adhesive bonding, applying gasket cement to the channel, not the rope (rope should go in dry), laying gasket evenly in channel without stretching or compressing—it should fit naturally, using masking tape to hold gasket in place while adhesive cures, and allowing full curing time (typically 24 hours) before operating stove.

Pro Tip: Start gasket installation at the bottom center of the door and work around the perimeter, meeting back at bottom center. This placement puts the least visible joint at the bottom where it's less noticeable.

Latch Adjustment After Gasket Replacement

New gaskets are thicker than worn gaskets, so your door latch will need adjustment after replacement. Most stoves include shim washers behind the door handle specifically for this purpose. Remove one or two washers to bring the latch cam closer to the door frame, increasing compression on the new gasket. Test with the dollar bill test after adjustment.

The handle should require moderate pressure to latch—not excessive force that might damage components, but enough resistance to confirm good compression. When properly latched, the handle should be approximately at the 8 o'clock position (on doors that latch left to right).

Common Gasket Problems

Gasket Falls Out: Indicates inadequate adhesive or improper surface preparation. Remove completely, clean channel thoroughly, and reinstall with fresh gasket cement.

Door Won't Close: Usually means gasket is too large or latch needs adjustment. Verify correct gasket size and remove latch shim washers if needed.

Gasket Chars or Burns: Indicates overfiring or gasket making direct contact with flame. Gaskets are designed for heat resistance, not direct flame exposure. Check for warped door or misalignment allowing flame to reach gasket.

Safety and Performance

Maintaining good gasket seals is essential for both safety and efficiency. Leaking gaskets allow smoke and carbon monoxide to escape into living spaces—a serious health hazard. They also prevent proper combustion control, reducing efficiency by 15-25% and increasing wood consumption significantly. Annual inspection and timely replacement of worn gaskets protects your family's safety while maximizing your wood stove's performance and fuel economy.
