Complete Guide to Firebrick and Refractory Panels

Why Firebrick is Essential

Firebrick, also called refractory brick or fire brick, serves multiple critical functions in wood stoves: protecting the steel firebox from direct flame contact and extreme heat that would quickly warp or burn through metal walls, reflecting radiant heat back into the combustion chamber, maintaining optimal combustion temperatures, and extending stove lifespan by reducing thermal stress on structural components. Regency F Series wood stoves (F1150, F2100, F2400, F2450, F2500, F3500, F5200), H Series models (H300, H200), I Series inserts, R Series Classic, S Series, and CS Series units all rely on properly installed firebrick for long-term durability and performance.

Without proper firebrick installation, steel fireboxes typically fail within 2-5 years from thermal damage. Quality firebrick extends firebox life to 20+ years, making it one of the most cost-effective protective measures for wood stoves. Regency designs model-specific firebrick configurations optimized for each stove's firebox dimensions and heat patterns.

The Material Science: Firebrick contains special refractory materials—typically high-alumina silicate compounds—engineered to withstand repeated thermal cycling from room temperature to 2000°F+ without cracking, spalling, or losing structural integrity. Standard construction brick would explode under these conditions. Regency F Series and H Series stoves use premium refractory materials designed for decades of service.

Types of Refractory Materials

Traditional Firebrick: Dense, heavy bricks made from fire clay. Excellent heat retention and durability. Standard sizes are typically 9" x 4.5" x 1.25" but vary by stove model. Color ranges from buff/tan to reddish-brown.

Vermiculite Panels: Lightweight panels made from expanded vermiculite. Better insulation properties than traditional brick. More fragile but easier to handle. Often used for rear and side walls.

Ceramic Fiber Board: Rigid board made from ceramic fibers. Lightweight, excellent insulation, but less durable than brick. Used in applications where weight is a concern.

Cast Refractory Panels: Precisely molded panels that incorporate channels for air flow. Common in modern stove designs. More expensive but optimized for specific stove models.

Firebrick Replacement Indicators

Minor hairline cracks in firebrick are normal—thermal cycling causes some superficial cracking that doesn't affect protective function. Replace firebricks when exhibiting: cracks wider than 1/4" that allow direct flame contact with firebox walls, crumbling or spalling where surface is flaking off, pieces broken off exposing steel surfaces, warping causing bricks to no longer sit flat against firebox walls, or significant deterioration that reduces protective coverage.

Inspection Schedule: Inspect firebrick annually, preferably at the start of heating season. Use a flashlight to examine all surfaces, paying special attention to bottom bricks that endure highest temperatures and areas where wood impacts frequently during loading.

Firebrick Installation and Configuration

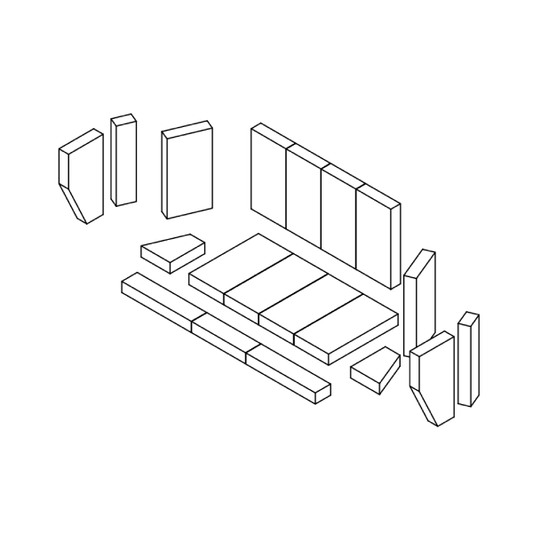

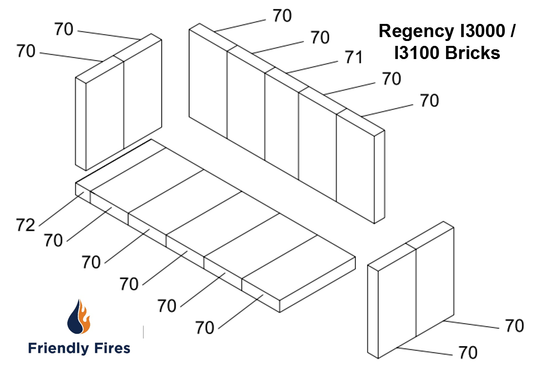

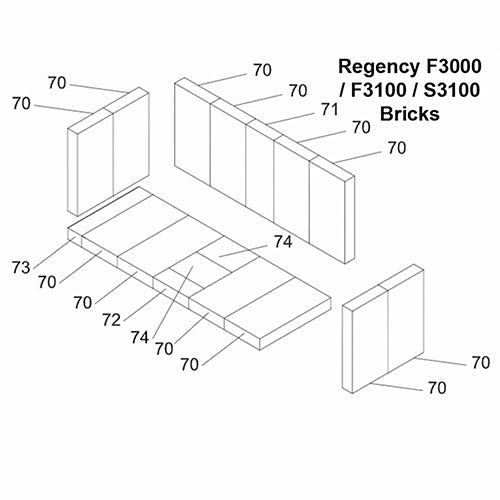

Firebricks must be installed in the correct configuration for your stove model. Installation typically follows this sequence: bottom floor bricks first, laid over any required floor gasket or LyTherm board, rear wall bricks second, positioned against back firebox wall, side wall bricks last, often supported by metal brackets or ledges.

Critical Points: Bricks should fit snugly but without forcing—some expansion space is normal. Never use mortar or adhesive between firebricks—they must be free to expand and contract with temperature changes. Ensure bricks sit flat and stable—wobbling bricks can shift during fuel loading. Replace entire sets when possible—new and old bricks expand at different rates and may not fit well together.

Common Firebrick Problems and Solutions

Bottom Brick Cracking: Most common failure point due to highest heat exposure and impact from dropped wood. Replace promptly to protect floor of firebox.

Ash Dump Hole Damage: Bricks surrounding ash dump openings can crack from thermal stress. Handle ash tools carefully to avoid impact damage in this area.

Premature Failure: Usually indicates overfiring, burning wet wood creating corrosive conditions, or mechanical damage from carelessly dropped logs. Proper operating practices extend brick life significantly.

Firebrick Maintenance

Firebrick requires minimal maintenance but benefits from periodic attention: brush away accumulated ash that could prevent proper air circulation, avoid dropping wood forcefully that could crack bricks, keep bottom bricks level—shifting can create hot spots where flames directly contact steel, never spray cold water on hot firebrick—thermal shock causes cracking, and inspect annually for deterioration, catching problems early.

Ash Coating Benefits: A thin coating of ash on firebrick actually improves its insulating properties. Avoid excessive cleaning that removes this protective layer—brushing away loose ash is sufficient.

Material Selection and Compatibility

Always use OEM (Original Equipment Manufacturer) firebrick specified for your stove model when available. Generic firebrick may seem interchangeable, but dimensions, thermal properties, and configuration are optimized for each stove design. Using incorrect brick can create gaps that allow flame contact with steel walls, improper fit that allows brick shifting, altered air flow patterns affecting combustion, and reduced efficiency from poor heat reflection.
