Complete Guide to Gas Fireplace Logs and Brick Sets
The Critical Role of Log Sets and Firebox Panels

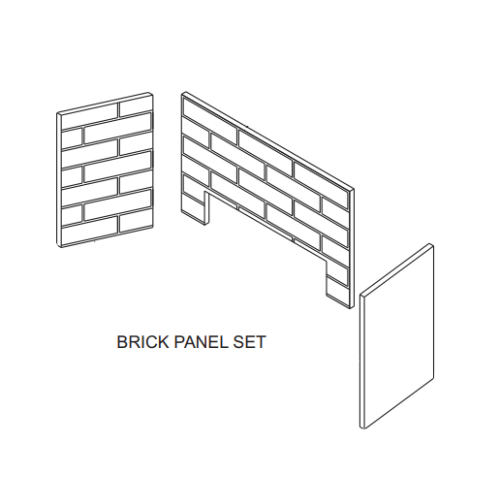

Gas fireplace log sets do far more than provide visual appeal—they're engineered components that work with the burner system to create proper flame patterns and ensure complete combustion. Logs are positioned specifically to direct flames, create realistic movement, and ensure adequate oxygen reaches all parts of the burner. Refractory brick panels serve a similar dual purpose: they create the aesthetic of a traditional masonry fireplace while protecting the metal firebox from the intense heat of gas flames. Regency P-Series (P33, P36, P42, P48, P90, P95, P121, P131), U-Series (U27, U31, U32, U37, U38, U39, U41, U43, U45), C-Series (C33, C34), H-Series (H15, H25, H27, H35), HZ-Series (HZ30E, HZ40E, HZ42E, HZ54E), L-Series (L234, L390, L540, L676, L900), and E-Series (E18, E21, E33) fireplaces each use model-specific log sets designed for their particular burner configuration.

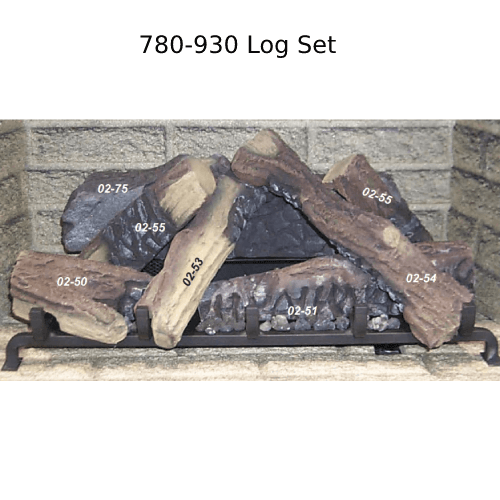

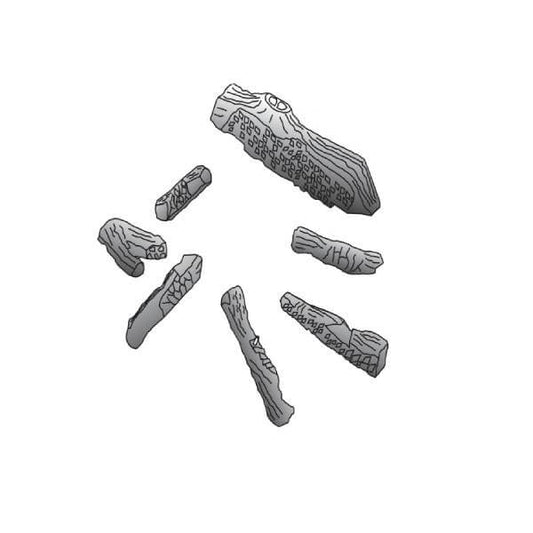

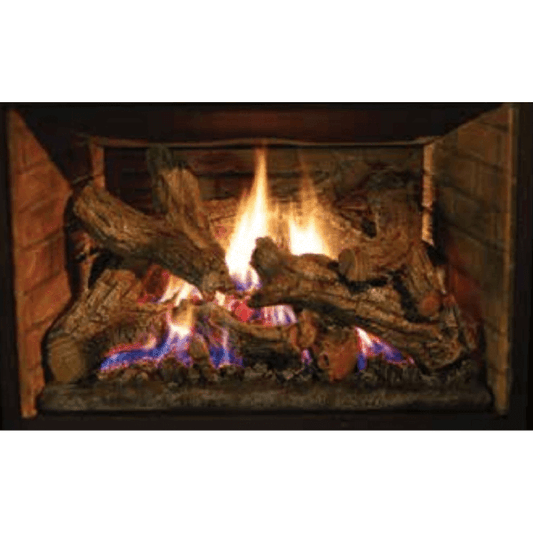

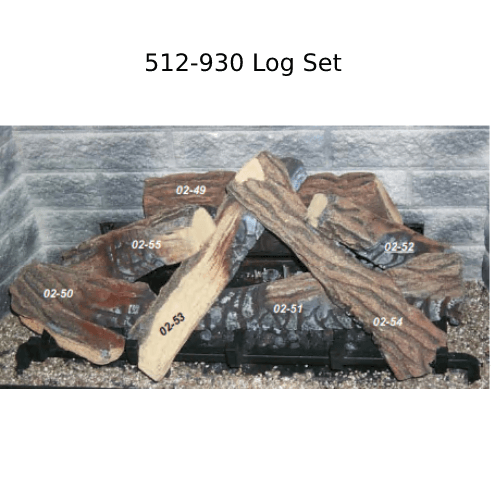

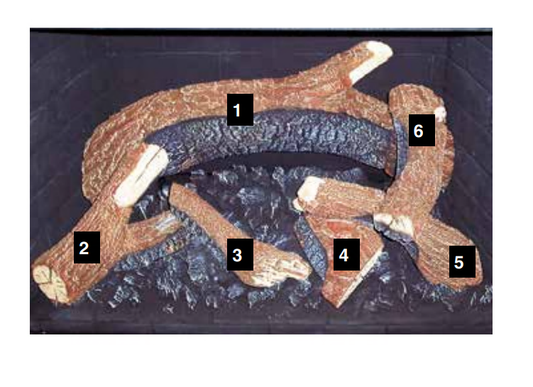

Gas fireplace logs come in two primary materials: ceramic fiber and refractory concrete. Ceramic fiber logs are lightweight (they feel like foam), highly detailed, and fragile. Refractory concrete logs are much heavier, extremely durable, and retain heat well. Both materials are designed to withstand continuous exposure to gas flames, but they require different handling during installation and cleaning.
Log Set and Brick Replacement Indicators
Replace log sets when you notice: cracks, chips, or chunks missing from logs that affect appearance or airflow patterns, excessive sooting on logs (especially at flame contact points) suggesting improper placement or combustion issues, logs that have shifted from their original positions, or significant color fading or deterioration. Replace brick panels when they show: cracking that exposes the metal firebox behind them, crumbling or flaking material, missing sections, or heat damage causing warping or separation from mounting surfaces.
Annual inspection per NFPA guidelines is recommended regardless of visible condition. During inspection, verify all logs remain in their factory-specified positions—logs that have shifted over time should be repositioned exactly per the installation diagram included with your fireplace.
Maintenance and Troubleshooting
Clean ceramic fiber logs annually by taking them outside and using a soft-bristled brush or vacuum with gentle suction to remove soot and debris. Compressed air can blow remaining particles from detailed surfaces. Never use water on ceramic fiber logs—their porous surface absorbs moisture that can cause cracking when heated. Refractory concrete logs can be cleaned similarly but are more tolerant of gentle handling.
When reinstalling logs after cleaning, refer to the placement diagram included with your fireplace or log set. Exact positioning matters—logs placed even slightly wrong can block burner ports, redirect flames improperly, or create incomplete combustion. Take photos before removing logs if you're unsure of correct positioning.
Common Problems and Solutions
Excessive Sooting on Logs: Usually indicates incomplete combustion. Verify log placement matches manufacturer diagram exactly. Check that nothing blocks burner ports. Confirm correct orifice size for your fuel type (NG vs LP). Persistent sooting requires professional diagnosis.
Logs Cracking or Breaking: Ceramic fiber logs are fragile and can crack from rough handling, thermal cycling, or age. Damaged logs should be replaced—cracks can propagate and cause pieces to fall onto the burner. Refractory logs rarely crack but may eventually show heat stress from years of use.
Yellow or Lazy Flames: Often caused by logs positioned too close to burner ports, restricting air flow. Verify placement per manufacturer specifications. May also indicate need for burner cleaning or service.
Safety Considerations
Proper log placement is a critical safety issue—not merely aesthetic preference. Incorrectly positioned logs can cause incomplete combustion that produces carbon monoxide, create hot spots that damage the firebox, or block safety sensors from functioning properly. Always arrange logs exactly according to manufacturer specifications using the placement diagram included with your fireplace. Never rearrange logs in creative patterns regardless of how realistic they might look. When replacing log sets, verify the replacement set is designed for your specific fireplace model—log sets are model-specific and must match firebox dimensions and burner configuration. Handle ceramic fiber logs carefully—they're fragile despite their appearance. Ensure you have a working carbon monoxide detector near your gas fireplace to alert you to any combustion problems. Professional installation is recommended for log set replacement to ensure proper positioning and safe operation.
