The Role of Gas Fireplace Burner Systems

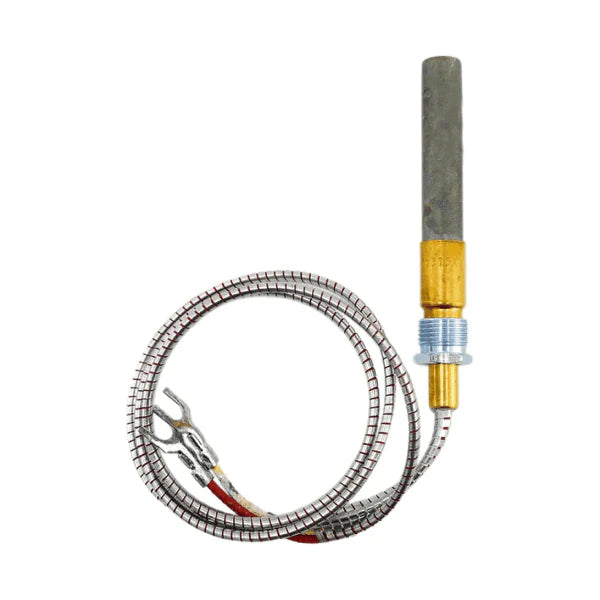

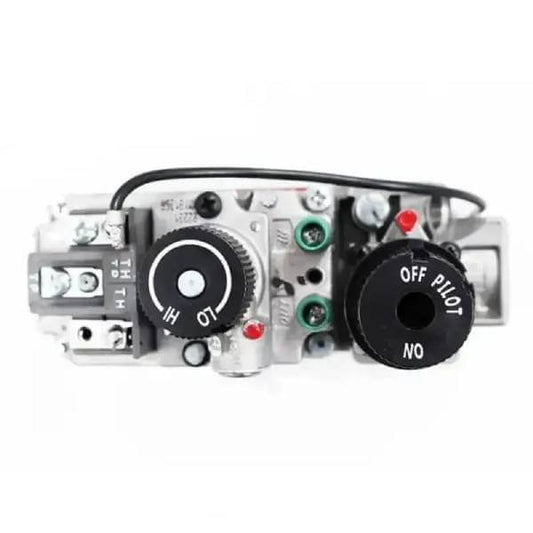

Your gas fireplace's burner system is the heart of the appliance—it controls fuel delivery, ignition, and the safety systems that prevent dangerous gas accumulation. The burner assembly distributes gas through precisely-sized ports that create the flame pattern you see, while the gas valve regulates pressure and flow rate. The pilot assembly includes critical safety components: the thermocouple or thermopile that generates a small electrical signal when heated by the pilot flame, telling the gas valve it's safe to remain open. Regency P-Series (P33, P36, P42, P48, P90, P95, P121, P131), U-Series (U27, U28, U31, U32, U37, U38, U39, U41, U43, U45), C-Series (C33, C34, C44), and L-Series (L234, L390, L540, L676, L900) gas fireplaces use high-quality burner systems designed for reliable operation and realistic flame appearance.

Understanding your system type is essential for ordering correct replacement parts. Millivolt systems use the thermocouple/thermopile to power the gas valve directly—no external electricity required. Electronic ignition (IPI—Intermittent Pilot Ignition) systems use electricity to spark the pilot and may not have a standing pilot flame. These systems are NOT interchangeable, and components from one type will not work in the other.

Burner and Valve Replacement Indicators

Replace pilot assembly components when: pilot light won't ignite or won't stay lit after releasing the control knob, main burner fails to ignite despite a lit pilot (thermopile failure), or pilot flame is weak, yellow, or improperly positioned on the thermocouple tip. Test your thermocouple with a multimeter—readings below 6 millivolts (mV) indicate failure. Thermopiles should read 300-400 millivolts or higher under load; readings significantly below this range mean replacement is needed.

Replace burner assemblies when you notice: inconsistent or varying flame height across the burner, yellow or sooty flames indicating incomplete combustion, difficulty adjusting flame height, visible rust or corrosion on burner ports, or persistent gas odor during operation. Gas valves require replacement when they fail to regulate flame properly, won't shut off completely, or show signs of internal failure.

Maintenance and Troubleshooting

Annual maintenance prevents most burner system problems. Clean pilot assembly components using compressed air to remove dust and debris that can block the pilot orifice or insulate the thermocouple from the flame. Inspect the thermocouple/thermopile tip—white chalky buildup reduces heat transfer and causes weak signals. Gently clean deposits with fine emery cloth, being careful not to damage the sensor.

Check burner ports for blockage from dust, spider webs, or debris—clogged ports cause uneven flames and incomplete combustion. Inspect the burner orifice to ensure it's the correct size for your fuel type: natural gas (NG) and liquid propane (LP) require different orifice sizes due to different fuel pressures and BTU content.

Common Problems and Solutions

Pilot Won't Stay Lit: Usually indicates thermocouple failure (test voltage output), pilot orifice blockage (clean with compressed air), or thermocouple not positioned correctly in pilot flame. The tip must be engulfed by the pilot flame to generate adequate voltage.

Main Burner Won't Ignite: With standing pilot systems, this typically indicates thermopile failure—the thermopile generates the power to open the main gas valve. Test voltage under load; replace if below 300mV.

Yellow or Sooty Flames: Indicates incomplete combustion from incorrect air/fuel mixture. Check for blocked burner ports, incorrect orifice size for fuel type, or improper log placement restricting airflow.

Safety Considerations

CRITICAL: Always verify fuel type compatibility before ordering any burner, valve, or orifice components. Natural gas (NG) and liquid propane (LP) operate at different pressures and require different orifice sizes—using incorrect components creates serious safety hazards including incomplete combustion, carbon monoxide production, or dangerous over-firing. Always turn off gas supply at the source before servicing any gas components. If you detect persistent gas odor, immediately shut off the gas supply, evacuate the area, and do not operate any electrical switches. Do not use the fireplace until a qualified technician confirms the leak is repaired. Use soapy water to check connections for leaks during maintenance—bubbles indicate escaping gas. Annual professional inspection is strongly recommended to detect issues not visible during routine maintenance.
